系列规格
Series Specification |
型号
Model | 输入功率［W］
Input power | 输入电流［A］
input current | 灯管功率［W］
lamp power | 灯管电流［A］
lamp current | 灯管数量［pcs］
Lamp quantity | 适用灯管型号
Applicable lamp model |
| UBP75/2-08N | 163 | 0.8 | 75*2 | 0.8 | 2 | GZW75D15Y-Z843 |
| UBP150-08N | 155 | 0.7 | 155 | 0.8 | 1 | GZW155D15W-Z1554 |
| UBP150-10N | 163 | 0.8 | 150 | 1.0 | 1 | ZW150D15W-Z1554,GZW150D15Y-U810 |
| UBP150/2-08N | 310 | 1.4 | 150*2 | 0.8 | 2 | GZW150D15Y-U810 |
| UBP170-18N | 210 | 1.0 | 170 | 1.8 | 1 | GZW170D19Y-Z843，GZW125D19W-Z843 |
| UBP190-12N | 206 | 1.0 | 190 | 1.2 | 1 | GZW190D15W-Z1554 |
| UBP200-21N | 210 | 1.0 | 205 | 2.1 | 1 | GZW205D19Y-Z1148，GZW125D19W-Z843 |
| UBP250-18N | 250 | 1.2 | 240 | 1.8 | 1 | GZW240D19W-Z1554 |
| UBP320-21N | 320 | 1.5 | 320 | 2.1 | 1 | GZW320D19W-Z1554 |
|
|
|
|
|
|
|
| 包装说明Package description |
| 技术参数Technical parameter |

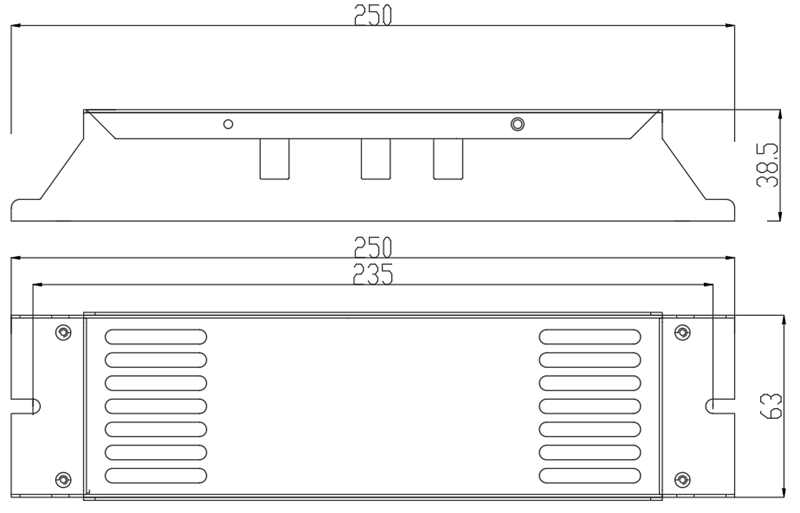

包装尺寸：250*147*52mm
Dimension:250*147*52mm |
| 额定电压：220V AC
Rated voltage | 功率因数：≥0.98
Power factor |
产品净重：0.43kg
Product weight:0.43kg |
| 电压范围：160-264V
Voltage range | 环境温度：-10-50℃
Ambient temperature |
|
|
|
| 输入频率：50/60Hz
Input frequency | 最大外壳温度：70℃
Maximum housing temperature |
| 特点Characteristic |
| 工作频率：25-50KHz
Working frequency |
|
过载、寿命末期、灯管破碎、漏气、断路等多种保护功能
various protective functions such as overload, using life end, lamp broken, air leakage, disconnection |
|
|
|
|
预热时间、灯管电流可定制
preheating time and lamp current can be customized |
|
|
|
|
