系列规格
Series Specification |
型号
Model | 输入功率［W］
Input power | 输入电流［A］
input current | 灯管功率［W］
lamp power | 灯管电流［A］
lamp current | 灯管数量［pcs］
Lamp quantity | 适用灯管型号
Applicable lamp model |
| UBP250/2-18N | 500 | 2.3 | 240*2 | 1.8 | 2 | GZW240D19W-Z1554,GZW150D19W-Z1000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 包装说明Package description |
| 技术参数Technical parameter |

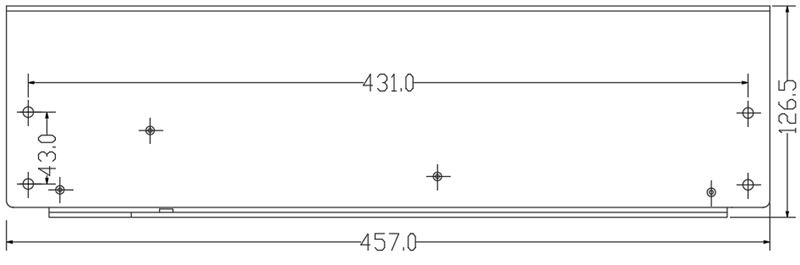

包装尺寸：250*147*52mm
Dimension:250*147*52mm |
| 额定电压：220V AC
Rated voltage | 功率因数：≥0.98
Power factor |
产品净重：1.65kg
Product weight:1.65kg |
| 电压范围：160-264V
Voltage range | 环境温度：-10-50℃
Ambient temperature |
|
|
|
| 输入频率：50/60Hz
Input frequency | 最大外壳温度：70℃
Maximum housing temperature |
| 特点Characteristic |
| 工作频率：25-50KHz
Working frequency |
|
过载、寿命末期、灯管破碎、漏气、断路等多种保护功能
various protective functions such as overload, using life end, lamp broken, air leakage, disconnection |
|
|
|
|
预热时间、灯管电流可定制
preheating time and lamp current can be customized |
|
|
|
|
